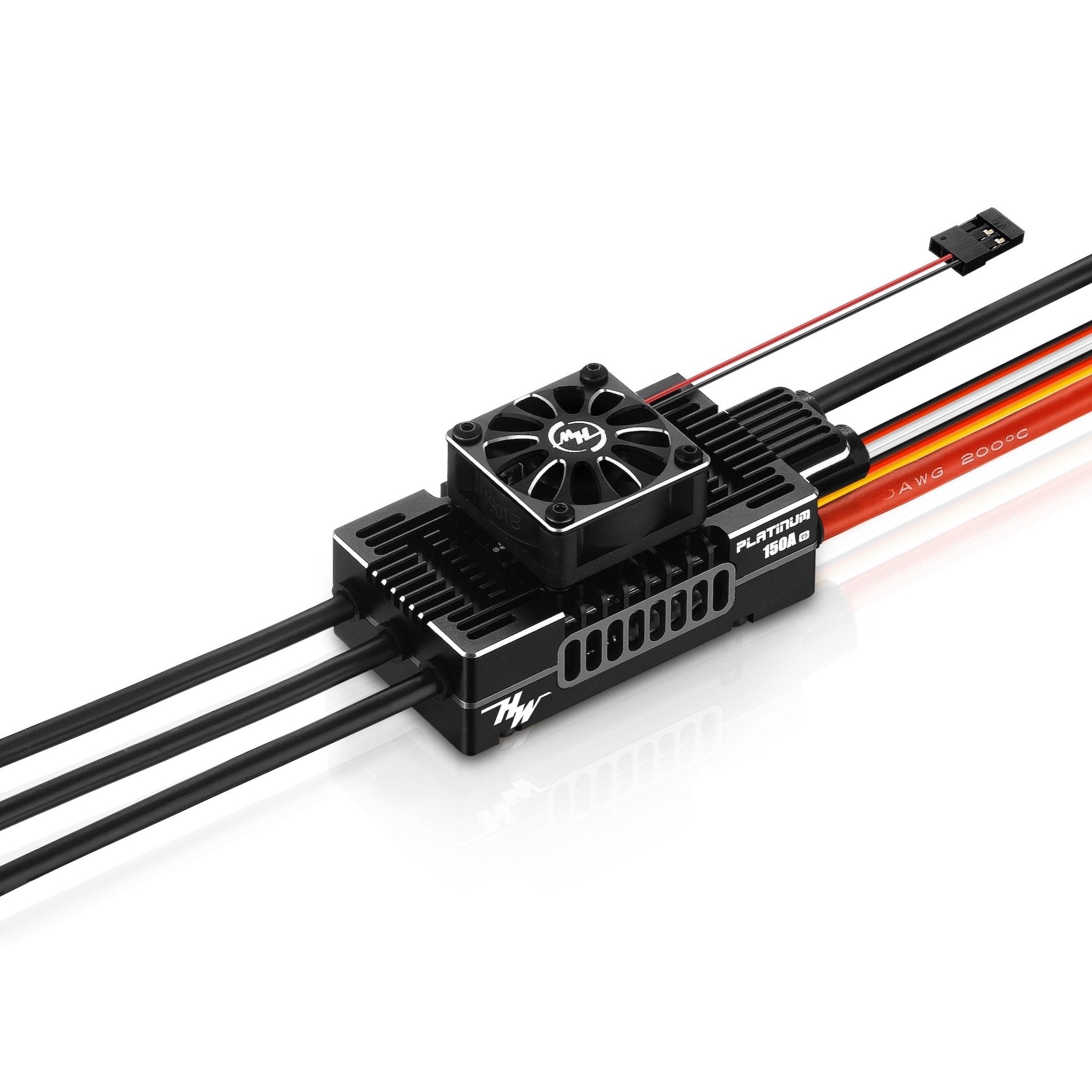

Platnium Pro 150A-V5, Brushless ESC

In stock
SKU: 30203500 Barcode: 088718502887
Regular price $ 189.99 USD
Platnium Pro 150A-V5, Brushless ESC

Product Features:

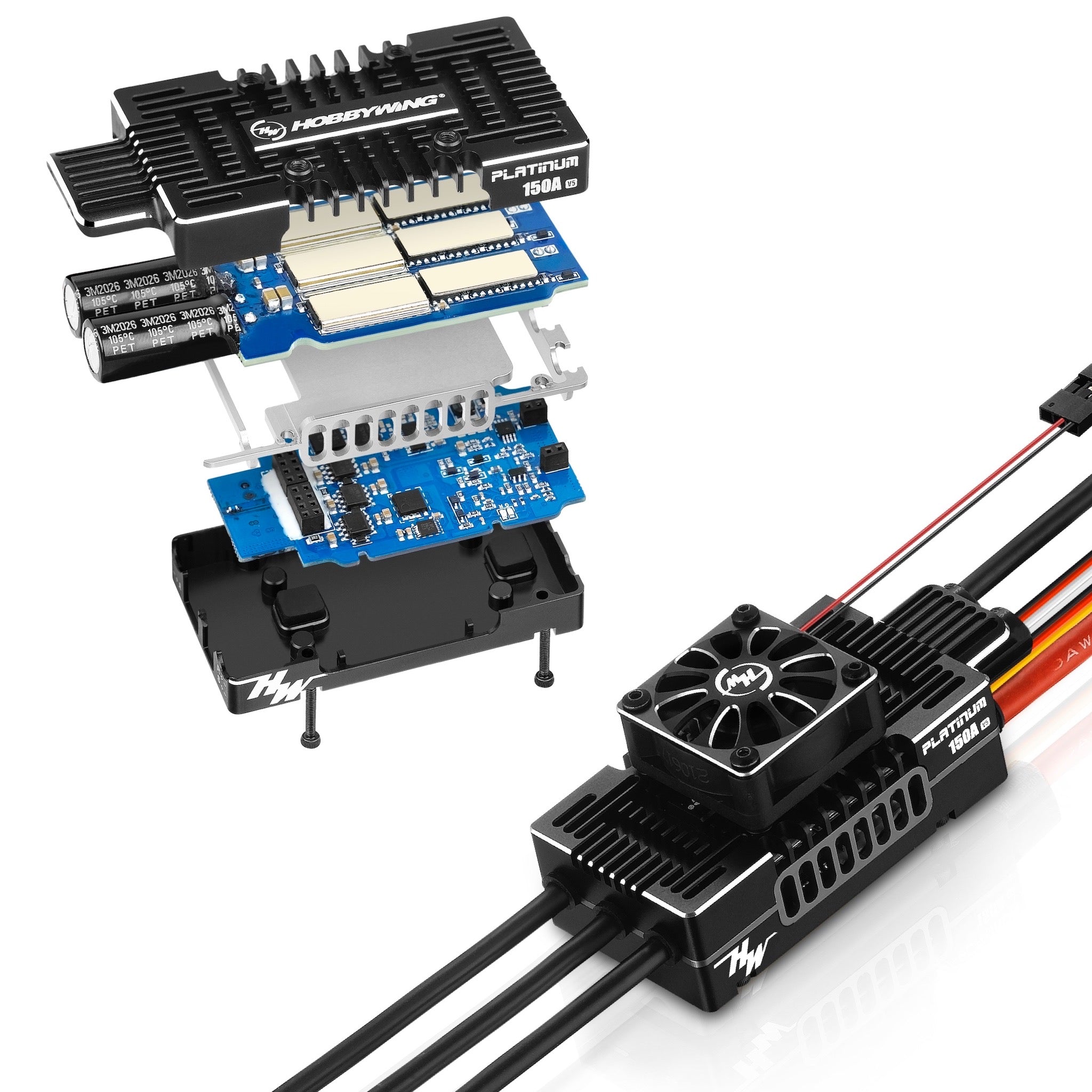

The two-windows open structure helps to further enhance the cooling efficiency on the ESC;
The Platinum 150A ESC is equipped with a high-power switch regulated BEC, with a continuous output current of 10A, an instantaneous current of up to 30A. The BEC module and other circuits are independent;
Equipped with the synchronous rectifier drive efficiency optimization technology (DEO---Driving Efficiency Optimization), the throttle response is more linear, drives more efficiently and is temperature efficient;
There are 4 flight modes: Fixed-wing mode/helicopter external speed-setting mode/helicopter elf-speed mode/helicopter storage fixed-speed mode;
The helicopter mode has a slow-start function;
Equipped with the helicopter speed-control function, the speed sensitivity is adjustable and easy to operate. In the case of rapid load changes, the main rotor speed is stable and has excellent fixed speed;
Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash
due to handling errors;
The ESC is equipped with LED indicators to represent the statuses and fault warnings;
Equipped with an output interface to showcase the motor speed output in real time;
The ESC has a separate parameter setting interface which allows it to be connected to the LCD parameter set-up box or OTA module for parameter setting. Connecting it to the standard power supply of the thermal fan is
possible as well;
The flight data recording function is able to record the minimum voltage, maximum temperature, maximum current, calibration speed (requires OTA module and mobile phone app);
OTA Bluetooth module supported. Changes to the parameter settings, software upgrading, data recording and other operations can be completed via the mobile phone (Apple and Android) APP;
Built-in with multiple protections which effectively extends the life of the ESC.
-start-up protection
-temperature protection
-capacitive temperature protection
-overload protection
-throttle signal loss protection
-input voltage abnormal protectio

Specifications:

  • Continuous/instantaneous current: 150A / 180A
  • Input voltage: 3-8 lithium battery
  • LED light: Display the statuses and fault alerts
  • Size/Weight: 83 x 37 x 31mm / 140g
  • Mounting holes: M3 - 3mm, 37.5 x 16.5mm
  • The scope of application: 550-580 class electric helicopter (main rotor length 550-580mm)
