Park 480 Brushless Outrunner M

In stock
SKU: EFLM1500 Barcode: 605482774236
Regular price $ 57.99 USD
Description
The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 250 watts of power.  It’s an especially good match for E-flite's Mini Edge 3D ARF (EFL2225) and Mini Funtana 3D ARF (EFL2075), and would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF (EFL2250).
    Features
    • Perfect match for 3D park flyers weighing 20–30 oz (565–850 g)
    • Ideal for scale park flyers 25–35 oz (710–990 g)
    • Ideal for models requiring up to 250 watts of power
    • High-torque, direct-drive alternative to inrunner brushless motors

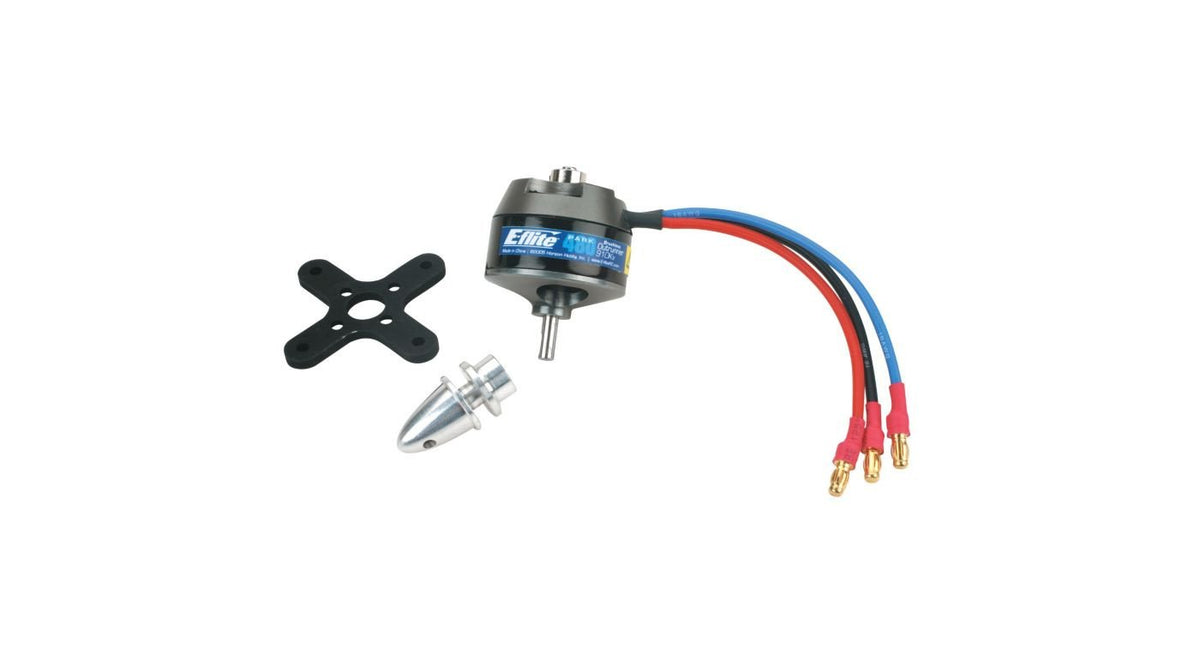

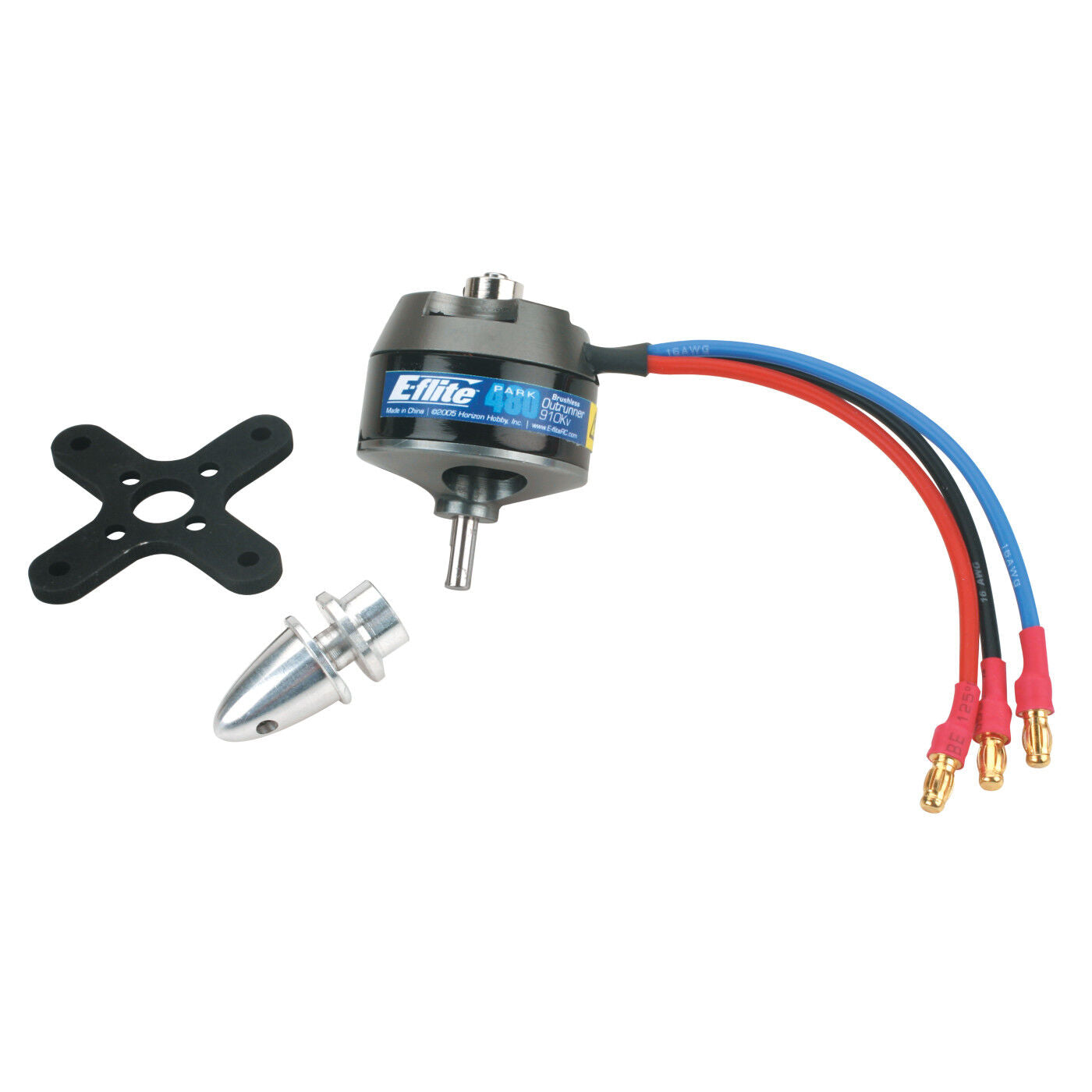

    • Includes mount, prop adapters and mounting hardware
    • External rotor design, 4mm shaft can easily be reversed for alternative motor installations
    • Slotted 12-pole outrunner design
    • Quiet, lightweight operation
    • High-quality construction with ball bearings and hardened steel shaft
    Specifications
    Speed Control: 20–35A brushless
    Bearings or Bushings: One 4 x 9 x 4mm Bearing and One 4 x 10 x 4mm Bearing
    Cells: 6–10 Ni-Cd/Ni-MH or 2–3S Li-Po
    Idle Current (Io): .85A @8V
    Motor Design: Outrunner
    Overall Diameter: 35mm (1.40 in)
    RPM/Volt (Kv): 910
    Recommended Prop Range: 10x7 to 12x6
    Resistance (Ri): .08 ohms
    Shaft Diameter: 4mm (.16 in)
    Size: Park flyer
    Voltage: 7.2–12
    Wire Gauge: 16 AWG
    Needed to Complete
    • 20A–35A brushless ESC
    • 2S–3S Li-Po or 6- to 10-cell Ni-MH/Ni-CD
    • 10x7–12x6 propeller
