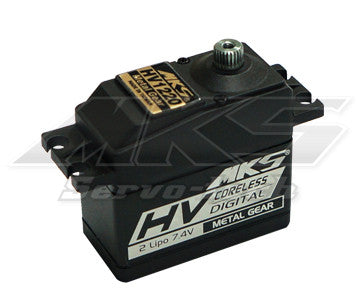

HV1220 MKS Titanium Gear Ultra High Torque Standard Digital Servo (High Voltage)

This is the MKS HV1220 Titanium Gear Ultra High Torque Standard Digital Servo. This high torque servo was developed for high voltage applications and is a great choice for 1/8 and 1/10 Scale Buggies, Monster Trucks and Rock Crawlers, Giant Scale Aircraft, and 600~700 CCPM helicopter applications.

Specifications:

• Torque:
• @6.0V: 230 oz-in (16.6 kg-cm)
• @6.8V: 281.9 oz-in (20.3 kg-cm)
• @8.2V: 319.4 oz-in (23 kg-cm)
• Speed:
• @6.0V: 0.159 s
• @6.8V: 0.140 s
• @8.2V: 0.115 s
• Weight: 57.64 g
• Dimensions: 40x20x37mm
• Operating Voltage: 6.0 ~ 8.2 V DC Volts
• Working Frequency: 1520μs / 333hz
• Dead Band: 0.0008ms (Default)
• Bearing Type: 2BB
• Motor Type: Japan High Quality Coreless Motor
• Gear Type: Chrome-Titanium alloy gear
