High Torque Low Profile Servo

In stock
SKU: HT-1980 Barcode: 690776141849
Regular price $ 131.25 USD

High Torque Low Profile Servo

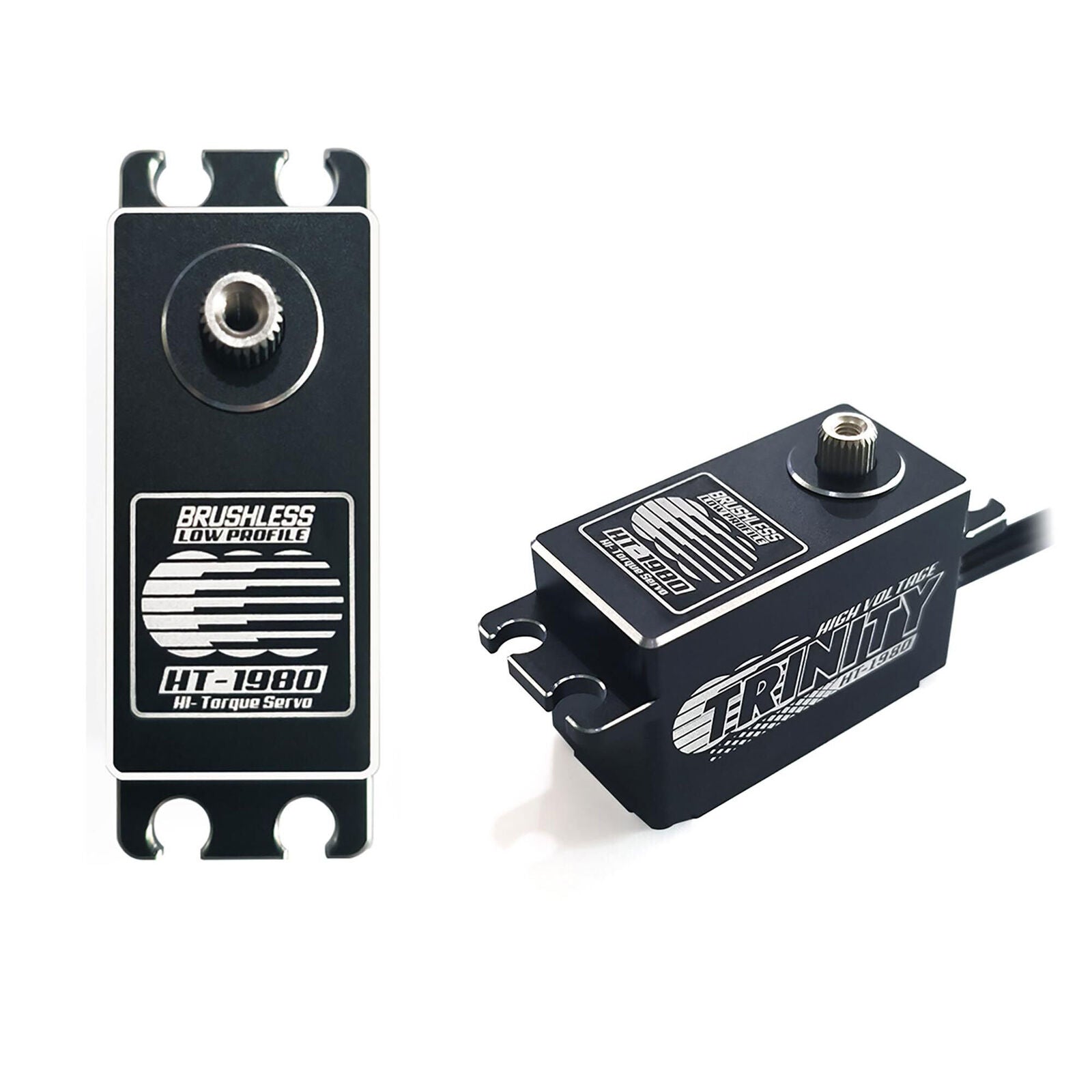

This is a Trinity HT-1980 High Torque Low Profile Servo

Brushless Digital High-Torque, Low Profile servo engineered from the ground up to provide the smoothest, fastest, and highest torque possible in a sleek aluminum case. Not only is the servo in a sleek aluminum case, but it also comes out of the box with a shortened 100mm servo wire to ensure clean and tidy install in all 1/10 vehicles. Not only will the sleek aluminum case look good in your vehicle on the pit table, but it will also feel ultra-smooth and fast on track, and it will look even better on the top step of the podium.

Features:

  • Full Aluminum Case
  • Dual Ball Bearings
  • Titanium/Steel Gear Type
  • 25T Spline

Specifications:

  • Operating Voltage: 6.0-7.4V
  • Operating Temperature: 5°F-150°F
  • Torque @ 6.0v - 222oz-in
  • Speed @ 6.0v - .095/ 60deg sec
  • Torque @ 7.4v - 250oz-in
  • Speed @ 7.4v - .083 / 60deg sec
  • Torque @ 8.4v - 264oz-in
  • Speed @ 8.4v - .073 / 60deg sec
  • Dimensions L x W x H (mm): 40.8 x 20.2 x 26.5
  • Weight: 62g
