HBL990 MKS Brushless Titanium Gear High Speed Digital Tail Servo (High Voltage)

In stock
SKU: HBL990 Barcode: 27256339
Regular price $ 168.99 USD

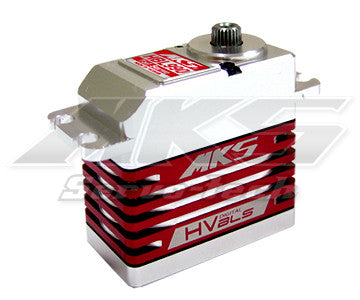

This is an MKS HBL990 Brushless Titanium Gear High Speed Digital Tail Servo.

Compatible Gyro's:

  • Spartan DS760, Quark
  • Futaba GY611, GY601, GY520
  • ALIGN GP700, GP750
  • Mikado V-Bar Tail, CSM SL720
  • Curtis Youngblood Mini-G, Solid G
  • Thunder Tiger TG-7000
  • BeastX Mircobeast



Specifications:

  • Torque:
    • @6.0V: 65.2 oz-in (4.7 kg-cm)
    • @7.4V: 80.5 oz-in (5.8 kg-cm)
    • @8.2V: 87.4 oz-in (6.3 kg-cm)
  • Speed:
    • @6.0V: 0.04 s
    • @7.4V: 0.036 s
    • @8.2V: 0.030 s
  • Weight: 70.55 g
  • Dimension: 40x20x40mm
  • Working Voltage: 3.5 ~ 8.4 V DC Volts  (2S Lipo un-regulated)
  • Working Frequency: 760μs / 560hz
  • Dead Band: 0.0008 ms (Default)
  • Bearing: 2BB
  • Motor: 4-Pole Brushless Motor
  • Gear: Chrome-Titanium alloy gear
