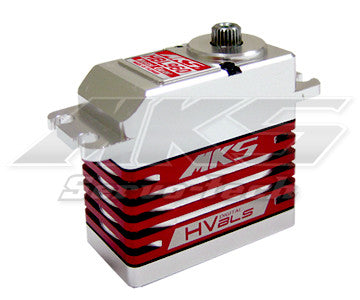

MHS Servo HBL960 Brushless Titanium Gear High Torque Digital Servo
Regular price
$ 165.80
Couldn't load pickup availability
The MKS USA MHS Servo HBL960 Brushless Titanium Gear High Torque Digital Servo is a 70g HV digital brushless standard servo with metal gears and an input voltage of 6.0–8.4V. It is designed for high performance cyclic helicopter applications and features an aluminum case with a CNC milled heatsink for heat dissipation. The HBL960 has a torque of 13.6kg.cm and a speed of 0.12s/60° at 6.0V, 17.0kg.cm and 0.10s/60° at 7.4V, and 18.6kg.cm and 0.09s/60° at 8.2V. It also has a dead band of 0.0008ms, a control system of +Pulse Width Control, and a working frequency of 1520μs/333hz.
SKU |
MKS-HBL960 |
|
Dead Band |
0.0008ms (Default) |
|
Control System |
+Pulse Width Control |
|
Working Frequence |
1520μs / 333hz |
|
Operating Voltage |
4.0 ~ 8.4 V DC Volts |
|
Operating Temperature Range |
-10 to + 60 Degree C |
|
Operating Speed (6V) |
0.12 sec/60° degrees at no load |
|
Operating Speed (7.4V) |
0.10 sec/60° degrees at no load |
|
Operating Speed (8.4V) |
0.09 sec/60° degrees at no load |
|
Stall Torque (6V) |
13.6 kg.cm (188.81 oz/in) |
|
Stall Torque (7.4V) |
17 kg.cm (236.09 oz/in) |
|
Stall Torque (8.4V) |
18.6 Kg.cm (258.31 oz/in) |
|
Motor Type |
Brushless Motor |
|
Potentiometer Drive |
Indirect Drive |
|
Bearing Type |
Dual Ball Bearings |
|
Gear Type |
Titanium Gears |
|
Connector Wire Length |
24.0 cm (9.4 in) |
|

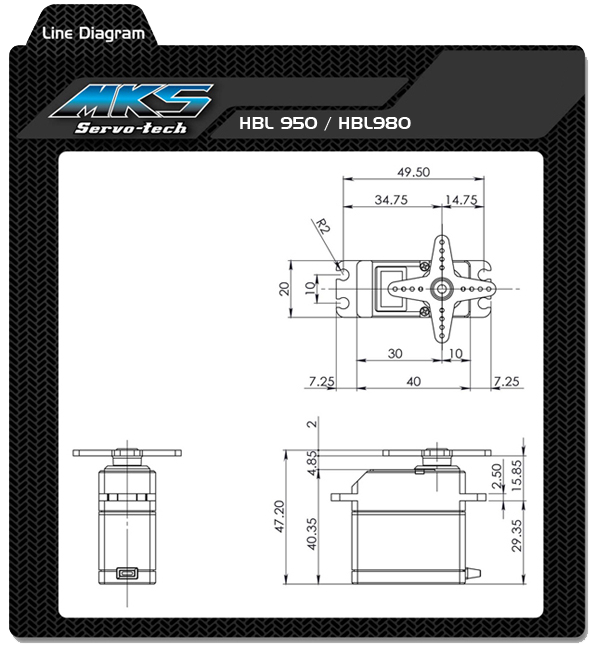

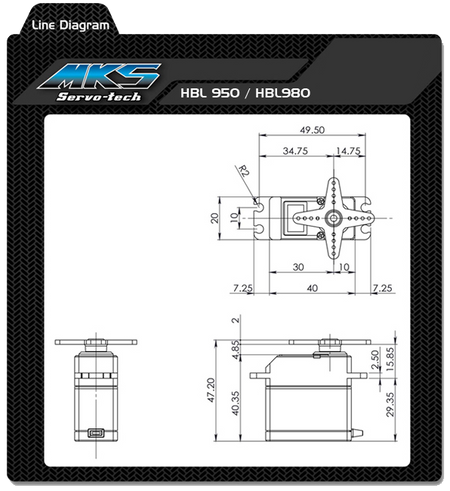

Dimensions |
40 x 20 x 40 mm ( 1.57x0.79x1.50 in) |
|
Weight |
70.29 g (2.48 oz) |
|
