HBL850 MKS Brushless Ti-Gear High Speed Digital Cyclic Servo (High Voltage)

In stock
SKU: HBL850 Barcode: 20211026001
Regular price $ 199.99 USD

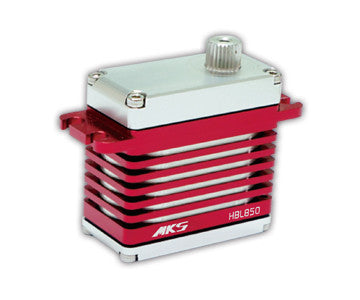

This is the MKS HBL850 Brushless Titanium Gear High Speed Digital Cyclic Servo.

Specifications:

  • Dead Band: 0.0008ms (Default)
  • Control System: +Pulse Width Control
  • Working Frequency: 1520μs / 333hz
  • Operating Voltage: 6 ~ 8.4 Volts
  • Operating Temperature Range: -10 to + 60 Degree C
  • Operating Speed:
    • @6V: 0.1 sec/60° degrees at no load
    • @7.4V: 0.079 sec/60° degrees at no load
    • @8.4V: 0.071 sec/60° degrees at no load
  • Stall Torque:
    • @6V: 252 oz-in (18.2 kg/cm)
    • @7.4V: 312.46 oz-in (22.5 kg/cm)
    • @8.4V: 345.79 oz-in (24.9 kg/cm)
  • 360° Modifiable: NO
  • Motor Type: Brushless Motor
  • Potentiometer Drive: Indirect Drive
  • Bearing Type: Dual Ball Bearings
  • Gear Type: Metal Gears
  • Connector Wire Length: 24.0 cm (9.4 in)

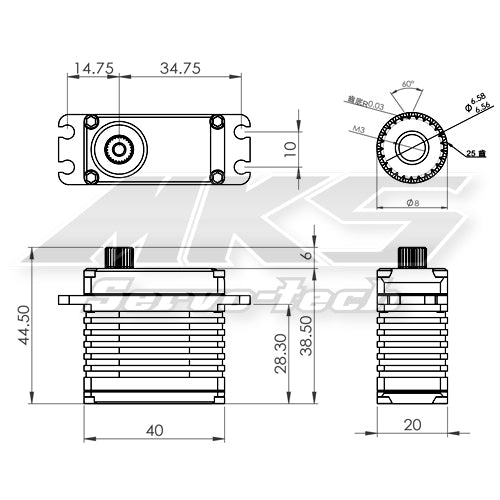

  • Dimensions: 40x20x38.5mm
  • Weight: 73g
