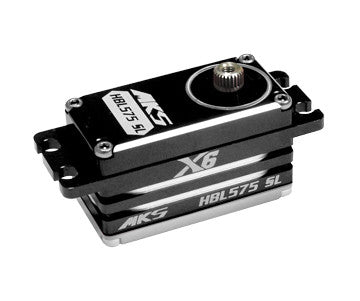

X6 HBL575SL MKS Brushless Titanium Gear Low Profile Digital Servo (High Voltage)

In stock
SKU: HBL575SL Barcode: 4710150350653
Regular price $ 158.99 USD

The MKS X6 HBL575SL Brushless Titanium Gear Low Profile Digital Servo is perfect for 1/10 scale surface applications that require high speed, low power consumption and superior holding torque, combined with the flexibility of high voltage circuitry in a low profile package.

Features:

  • Ideal for 1/10 surface applications
  • High speed, incredible efficiency, and low power consumption
  • Chrome-Titanium gears for precision and durability
  • .10 / 138.87 oz-in @4.8V and .07 / 233.3 oz-in @ 7.4V!
  • Low-profile dimensions make it perfect for vehicles that are low on space
  • CNC Machined aluminum case for exceptional cooling
  • HD 4096 Resolution
  • 0.0008ms Dead Band
  • Superior Holding Torque
  • Japanese Brushless Motor


Specifications:

  • Torque:
    • @4.8V: 138.87 oz-in (10 kg-cm)
    • @6.0V: 184.70 (13.3 kg-cm)
    • @7.4V: 233.30 (16.8 kg-cm)
  • Speed:
    • @4.8V: 0.10 s
    • @6.0V: 0.08 s
    • @7.4V: 0.07 s
  • Weight: 53.51 g
  • Dimension: 40.5x20.5x23.1mm
  • Working Voltage: 3.5 ~ 7.4 V (Max)
  • Working frequency: 1520μs / 333Hz
  • Dead Band: 0.0008 ms (Default)
  • Bearing: 2BB
  • Motor: 4 Poles Japan High Quality Brushless Motor
  • Gear: Chrome-Titanium alloy gear


NOTE:
The working temperature is higher when operating at 7.4V. Please ensure that the servo has adequate ventilation, or install cooling fan to increase airflow.
