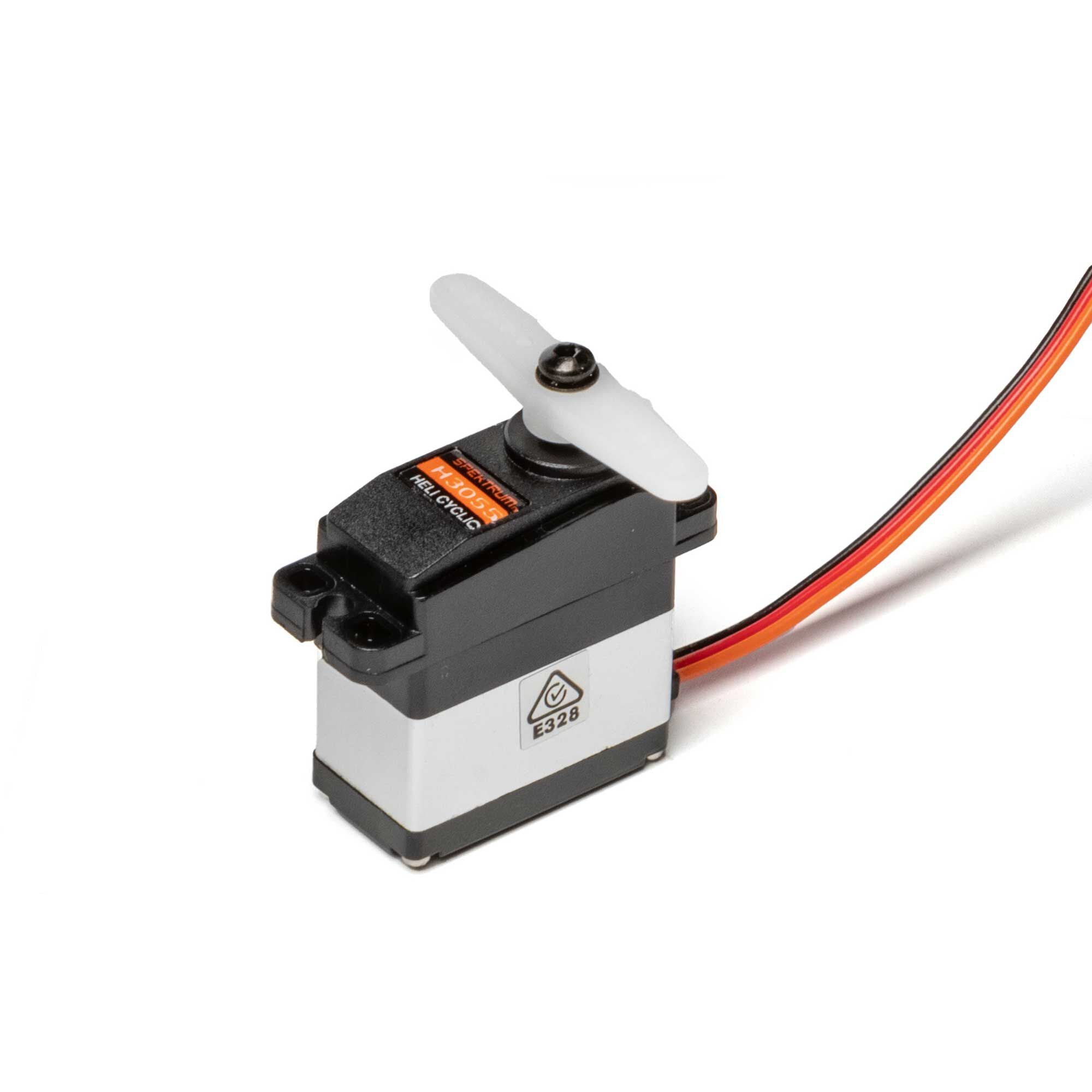

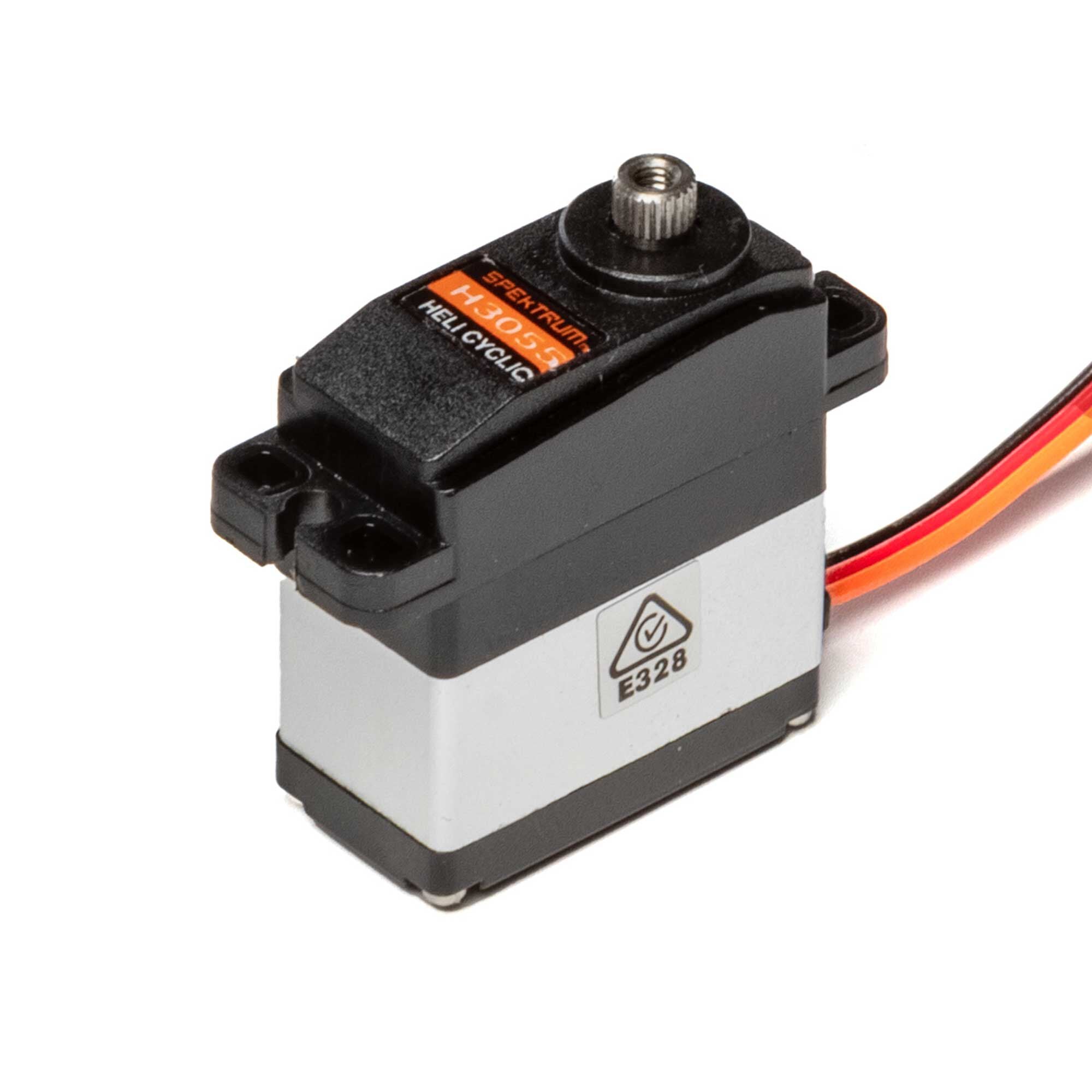

H3055 Mid-Torq Ultra-Speed Micro Heli Cyclic Servo

Out of stock
SKU: SPMSH3055 Barcode: 605482416853
Regular price $ 34.99 USD

H3055 Sub-Micro Digital Mid-Torque Ultra-Speed Metal Gear Heli Cyclic Servo

Overview

Upgrade your 250-450 size heli cyclic servos with the high speed and accurate H3055 Servo. Touting a blazing fast .053 transit speed, impressive 36 oz-in torque and industry leading position accuracy and holding power, these are a great sub-micro size servo to upgrade many Blade Bind and Fly models and a perfect pair for many 250-450 size kit models requiring a sub-micro size servo form factor. Frequency: 333Hz

Specifications

Application 250 - 450 size heli, cyclic
Bearing Single
Bushing Or Bearing Bearing
Connector Wire Length 7.87" (200mm)
Deadband 2
Gear Type Metal
Maximum Servo Torque 4.8V 29 oz-in (2.1kg-cm), 6V 36 oz-in (2.6kg-cm)
Product Height 1.17" (29.6mm)
Product Length 0.91" (23mm)
Product Weight 0.46 oz (12.9 g)
Product Width 0.47" (12mm)
Programmable No
Servo Operating Voltage 4.8 - 6.0V
Servo Size Category Sub-Micro
Servo Type Digital
Wire Gauge 22 AWG
