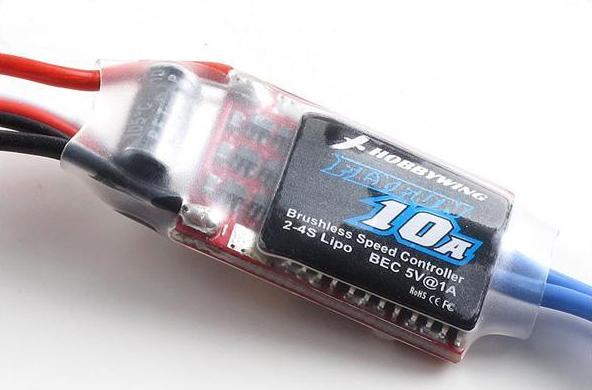

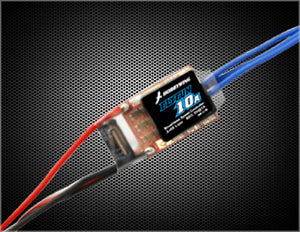

Hobbywing FlyFun 10A ESC 2-4S

In stock
SKU: 80020580 Barcode: 088718502115
Regular price $ 12.99 USD
The FLYFUN Series is designed for advanced users



1  Specifications



1.1 Output: Continuous 10A, Burst 12A up to 10 Secs. PWM is 16KHz

1.2 Input Voltage: 2-4 cell lithium battery or 5-12 cell NiCd/NIMh battery.
1.3 BEC: 1A / 5V (Linear mode).
1.4 Max Speed: 210,000rpm for 2 Pole BLM, 70,000rpm for 6 pole BLM, 35,000rpm for 12 pole BLM.
                               (BLM: BrushLess Motor)
1.5 Size: 27mm (L) * 17mm (W) * 6mm (H).
1.6 Weight: 9g.


2  Features
2.1 Safety Arming Feature: Regardless of the throttle stick position, the motor will not spin after battery is connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all available transmitters.
2.3 Programmable Items:
       Brake Setting: brake enabled / brake disabled.
       Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
       Low Voltage Protection Mode (Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
       Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
       Start Mode: normal / soft / very soft.
       Timing: low / medium / high.
       Reset: reset all the programmable items to their default settings.
2.4 Full Protection Features: Low voltage cutoff protection / Over-heating protection / Throttle signal lost protection.
3  Advantages

3.1 Military standard capacitor with extremely low resistance decreases unwanted RF noise during flying.
3.2 Extreme low resistance PCB helps in producing super current endurance capability.
3.3 Microprocessor uses a separate voltage regulator IC, with great anti-jamming capability.
3.4 Compatible with Hobbywing's Program Card  (purchase separately)
