Spektrum Firma SPMXSM1300 3652 3300Kv 4-Pole Brushless Motor: 3.175mm

In stock
SKU: SPMXSM1300 Barcode: 605482715680
Regular price $ 44.99 USD

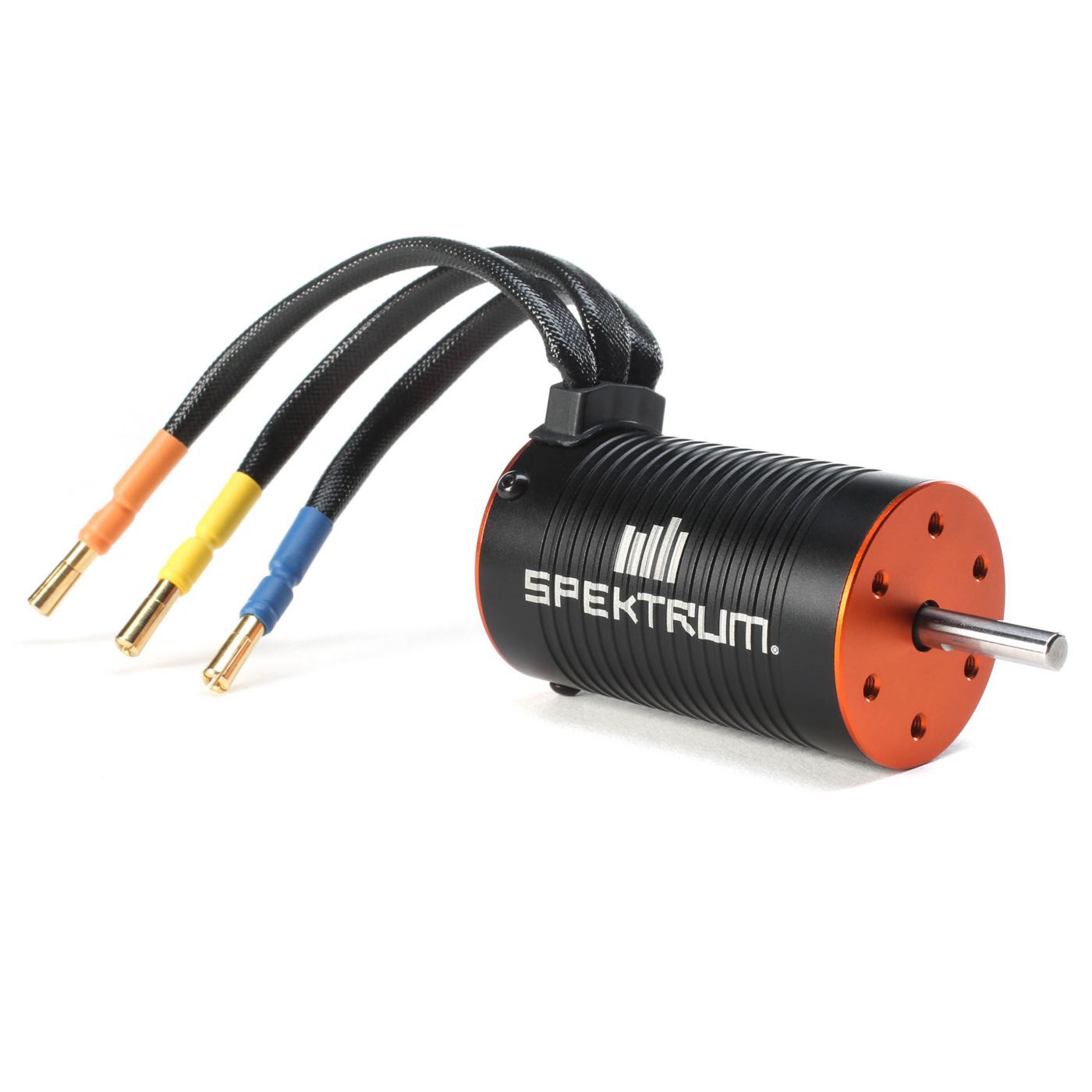

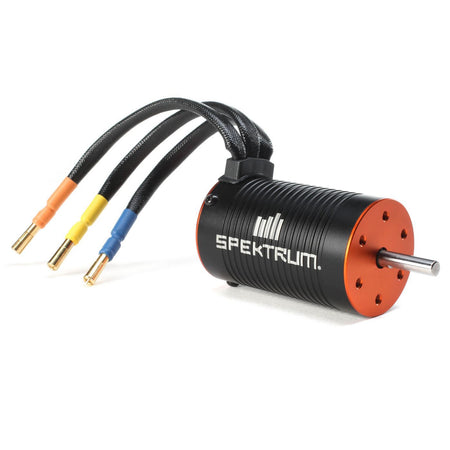

Firma 3300Kv Brushless Motor

Overview

The Firma 3300Kv brushless motor is a great choice for 1/10 scale 4WD, 2WD and on-road models running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 85A Smart ESC.

Features

  • Excellent upgrade for 540- and 550-size brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
  • High-quality 4-pole sintered rotor
  • 4mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 1/8" shaft
  • Specifications

    Application 1/10 scale 4WD, 2WD, and on-road models running 2S – 3S LiPo
    Bushing Or Bearing Bearing
    Connector Type 4mm Bullet
    Efficiency 82%
    Input Voltage 6 – 12.6V (2-3S LiPo, 4-9 NiMH)
    Maximum Continuous Current 33A
    Motor Design Inrunner
    Motor Size 3652
    Motor Type Brushless - Sensorless
    Mounting Dimensions Same as 540 and 550 size brushed motors
    Number of Poles 4
    Outer Diameter 1.47" (37 mm)
    Output 430W (2S)
    Product Length 2.04" (52 mm)
    Product Weight 7.05oz (200g)
    Recommended Speed Control Spektrum Firma 85A Smart ESC
    RPM/Volt (Kv) 3300Kv
    Shaft Diameter 0.196" (5 mm)
