Digital Mighty Mini BB HS-5245MG: Universal
Regular price
$ 44.99
Couldn't load pickup availability

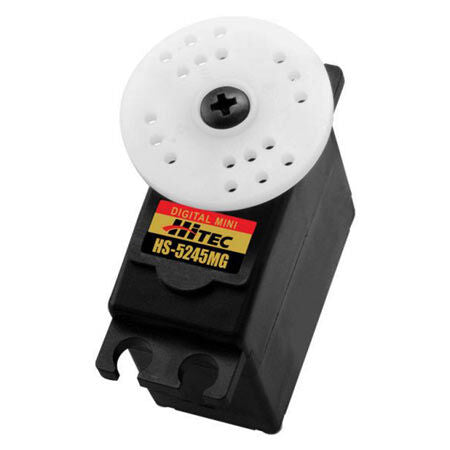

HS-5245MG Mini Digital Metal Gear Servo
With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.
Features
- Metal and M/P Gear Train Technology
- Programmable Digital Circuit
Overview
With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.
Specifications
- Bearing Dual Ball Bearing
- Bushing Or Bearing Bearing
- Current Draw Idle 3 mA
- Current Draw Stall 1,200 mA
- Deadband 4 µs
- Gear Type Metal
- Input Voltage 4.8V ~ 6.0V
- Max Servo Torque 40-99 oz-in
- Maximum Servo Speed 0.100-0.149 sec
- Maximum Servo Torque 76oz/in
- Motor Type Brushed

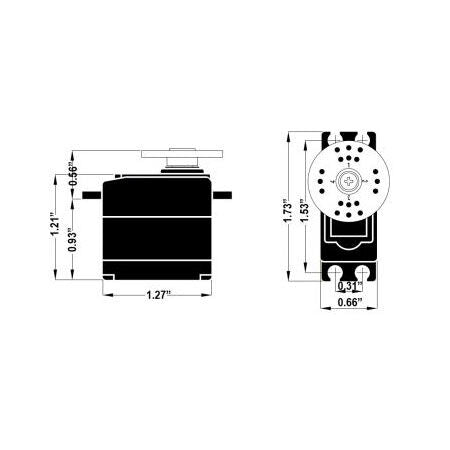

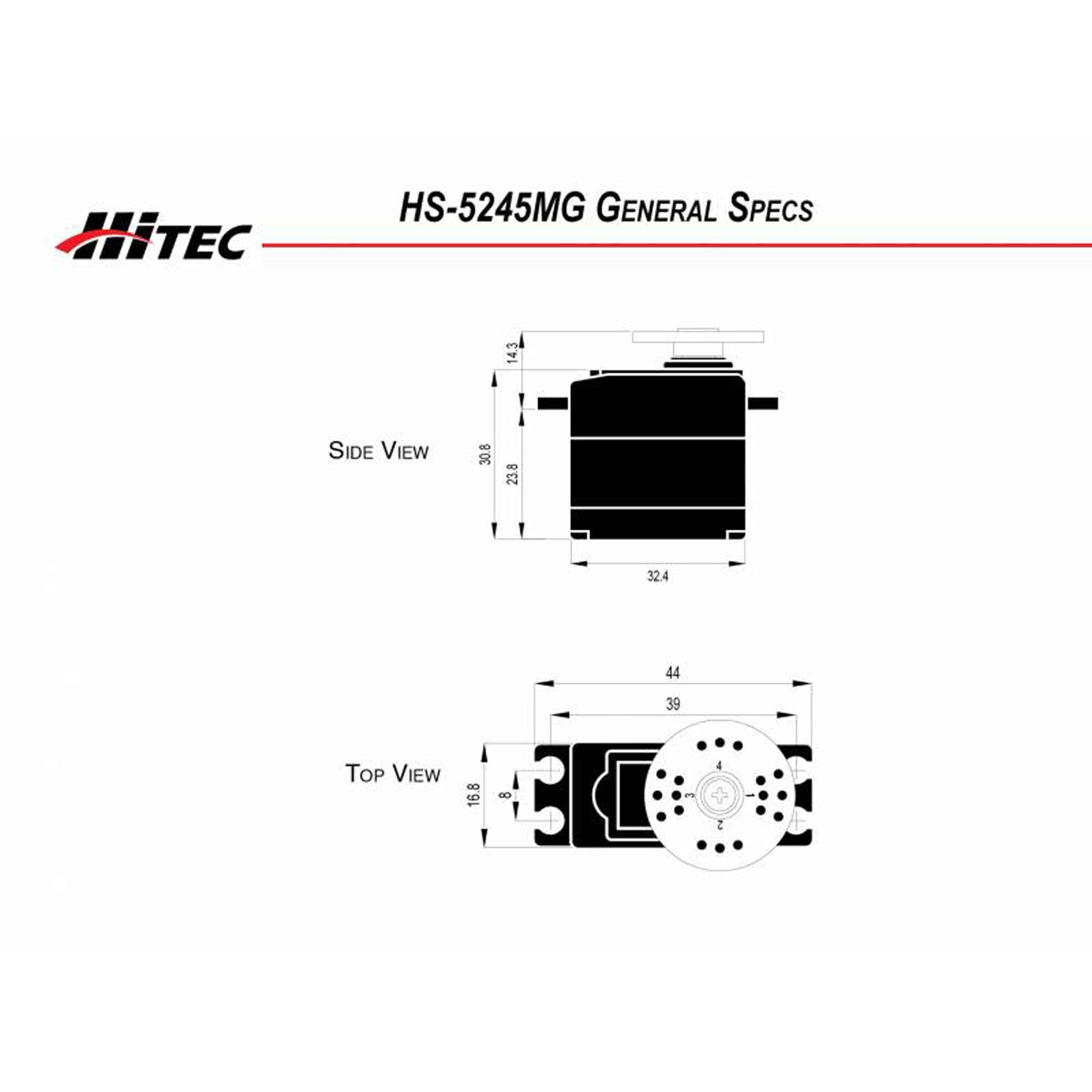

- Product Height 1.21" (31 mm)
- Product Length 1.27" (32 mm)
- Product Weight 1.12oz (32.0g)
- Product Width 0.66" (17 mm)
- Programmable Yes
- Servo Operating Voltage 4.8 - 6.0V
- Servo Size Category Mini
- Servo Type Digital
- Spline Count 24 - Tooth
- Torque @4.8V 61oz/in / @6.0V 76oz/in
- Water-Resistant No
