Spektrum Brushless Motor; 3226-930kV 14-Pole
Regular price
$ 45.99
Couldn't load pickup availability

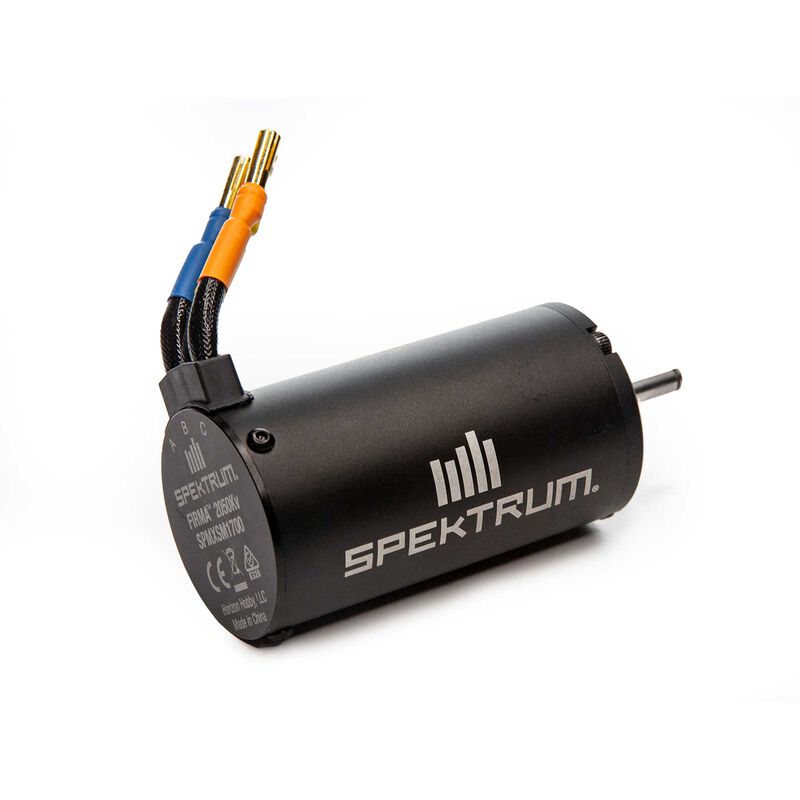

Firma 2050Kv Brushless Motor
- 4mm Gold Plated Bullet Connectors
- Brushless Sensorless 4-pole 8-Magnet Rotor
- Ideal for 1/7 and 1/8 Scale Racers and Bashers with 3-6S LiPo Setups
In The Box
- Firma 2050Kv Brushless Motor
Needed to Complete
- 150A ESC
Overview
The Firma 2050Kv brushless motor is a perfect option for 1/7 and 1/8 scale buggy, truggy or monster trucks with a 3S-6S LiPo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 4mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.
Features
Product Specifications
| Motor Design | Inrunner |
| Connector Type | 4mm Bullet |
| Efficiency | 85% |
| Motor Size | 4074-2050Kv Brushless Inrunner |
| Product Length | 2.9" (74 mm) |
| Application | 1/8 scale buggy, truggy or monster trucks with 3S-6S LiPo setup |
| Number of Poles | 4 |
| Output | 5050W |
| Product Weight | 0.92lbs (415g) |
| Shaft Diameter | 0.196" (5 mm) |
| Size | 4074 |
| Motor Type | Brushless |
| Maximum Continuous Current | 62A |
| Outer Diameter | 1.57" (40 mm) |
| Input Voltage | 12 - 25.2V |
| RPM/Volt (Kv) | 1900Kv |
| Sensored | No |
