77096-4-BLUE X-MAXX 8s Monster Truck with Belted tires

Only 1 left
SKU: 77096-4-BLUE Barcode: 020334035431
$ 899.95
Sale $ 1,099.95 $ 899.95

Share to

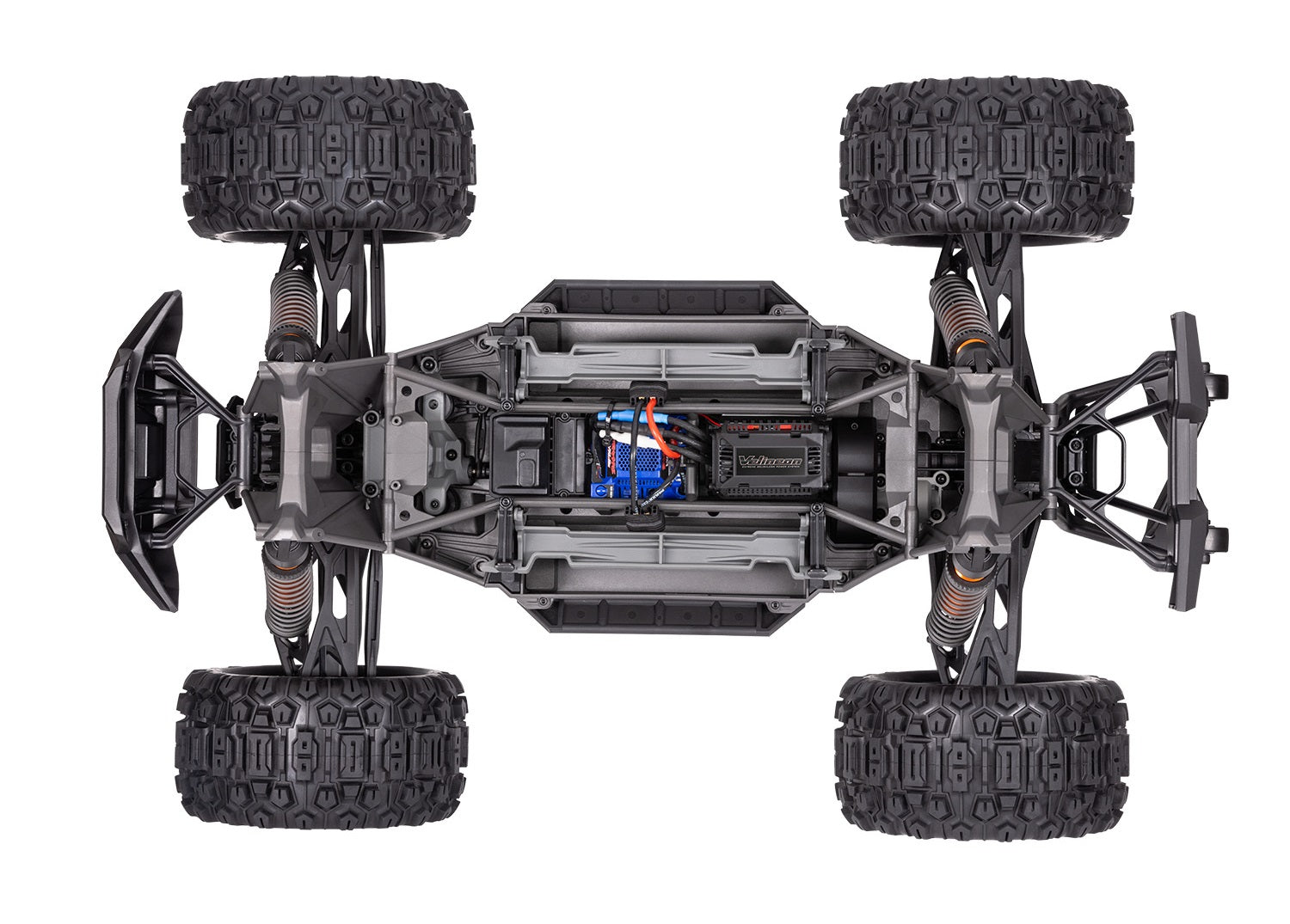

X-Maxx 8s Belted (77096-4) Chassis Top View
Unrelenting 4X4 power, mammoth size, and award-winning innovation make X-Maxx the ultimate monster truck. With 30+ volts of extreme 8s power, X-Maxx defies physics, unleashing jaw-dropping acceleration and 50+ mph speed. Belted Sledgehammer® tires conquer the most extreme terrain while providing unrivaled high-speed stability. Built to take brutal punishment in stride, X-Maxx is the definition of Traxxas Tough™.
  • VXL-8s™ Waterproof Electronic Speed Control
    • 8s LiPo compatible
    • Built-in cooling fan
    • Real-time telemetry via Traxxas Link
    • Machined heat sinks
    • 10-gauge silicone wire
    • Integrated protection circuits
    • LED status lights
  • Velineon® 1200XL Brushless Motor
    • “Big Block” brushless motor
    • 4-pole 1275 kV
    • 5 mm output shaft
    • Aluminum slip-on heat sink
    • Dual motor cooling fans
  • 50+ MPH with Two 4s LiPo Batteries and Included Optional Spur Gear
  • Traxxas Stability Management® (TSM)
    • Helps prevents spinouts and loss of control
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4 GHz High Output Radio System
    • Traxxas Link™ enabled
    • 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • BEC Voltage and Motor Temperature Sensor installed
  • Clipless Body Mount System
    • Quick one-hand installation and removal
    • Uses pivoting rear latch mechanism
    • Eliminates body posts and clips
  • Drivetrain
    • Full-time shaft-driven 4-wheel drive
    • All-metal gears and CVDs
    • Overdrive gearing pre-installed
    • Torque-Biasing Center Drive™ absorbs shocks and distributes power
    • 24 mm splined wheel hexes
    • Wheel hexes retained with a clip
    • 17 mm hex on outside of wheel
    • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
    • Splined outdrives attached with external thru-bolt method
    • Heavy-duty Cush Drive™ with steel spur gear
    • Fully machined aluminum stub axles
    • Splined aluminum center driveshaft
  • Heavy-Duty Fixed Motor Mount
    • Precision, preset gear mesh adjustments
    • No manual gear mesh adjustments are required
    • Motor retention separate from gear mesh
  • Heavy-Duty Modular Composite Chassis
    • Interlocking front and rear bulkheads
    • Motor mounts to rear bulkhead to eliminate gear crunching flex
    • Easy to service and access components
    • Driveline is sealed in the chassis to keep out dirt and grit
  • Clipless Battery Retention System
    • No body clips or hook and loop straps
    • Battery hold-downs pivot for easy access
    • Adjustable for battery size
    • More secure than conventional retention systems
    • Integrated into chassis top brace for improved battery tray and chassis stiffness
  • Bumpers
    • Front energy absorbing rubber impact bumper
    • Lower front and rear skids for impact and abrasion resistance
    • Integrated nerf bars for side impact resistance
  • Heavy-Duty Steering Bell Cranks and Servo Saver
    • High-output steering servo
    • Wired directly into the RX box, no external wires seen on chassis
    • New mounting system to fully support case
    • Double-shear, bearing supported servo horn
  • Suspension
    • Engineered to optimize suspension travel and steering angles
    • All critical suspension points have double shear strength
    • High strength steel suspension pins used throughout
    • Suspension pins retainers won’t come loose or “back-out”
    • 4 mm machined pivot balls
    • C-hub and steering block geometry maximizes steering angle
    • Adjustable roll center
    • Fixed, high-strength camber and toe links
    • Steel upper and lower tie bars
    • Full contact sealed bearings used in exposed locations
  • Large-Scale GTX Shocks
    • Machined aluminum threaded body
    • Extra-large bore and capacity
    • 5.2 mm damper shaft
    • Lower seal cartridge includes integrated wiper seal combination
    • Adjustable upper spring retainer
    • Plastic shock caps with pivot balls
    • Fixed shock locations
    • Lower spring perches bolted on
  • Wheels/Tires
    • Massive 8.4″ Sledgehammer® belted tires
      • Virtually eliminates ballooning at high speeds
      • Open tread block design
      • 2-piece foam insert
      • High-strength glue and bead design
    • Large, dual-diameter wheels
