DCB M41 WIDEBODY, NO BATTERY OR CHARGER
-

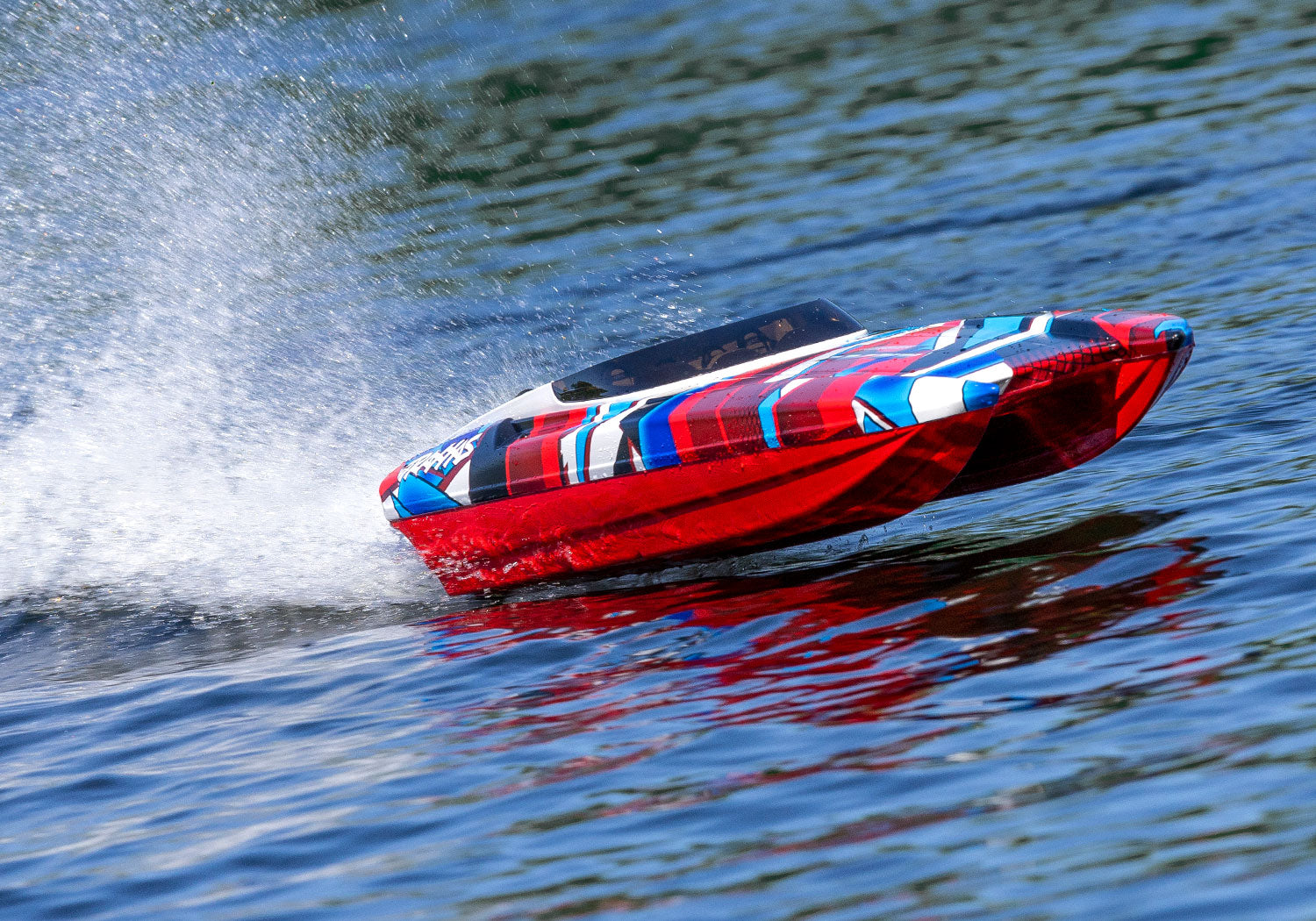

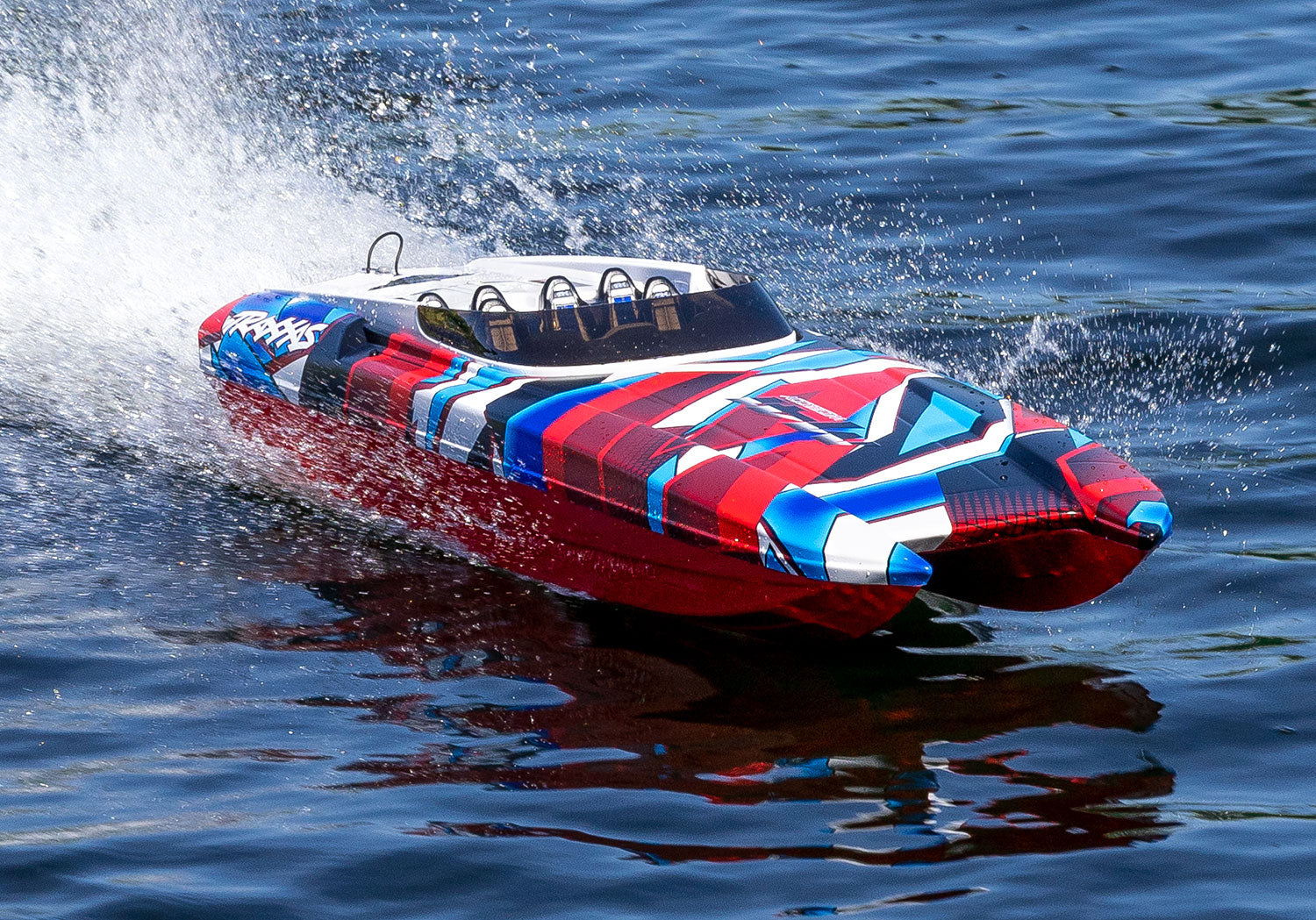

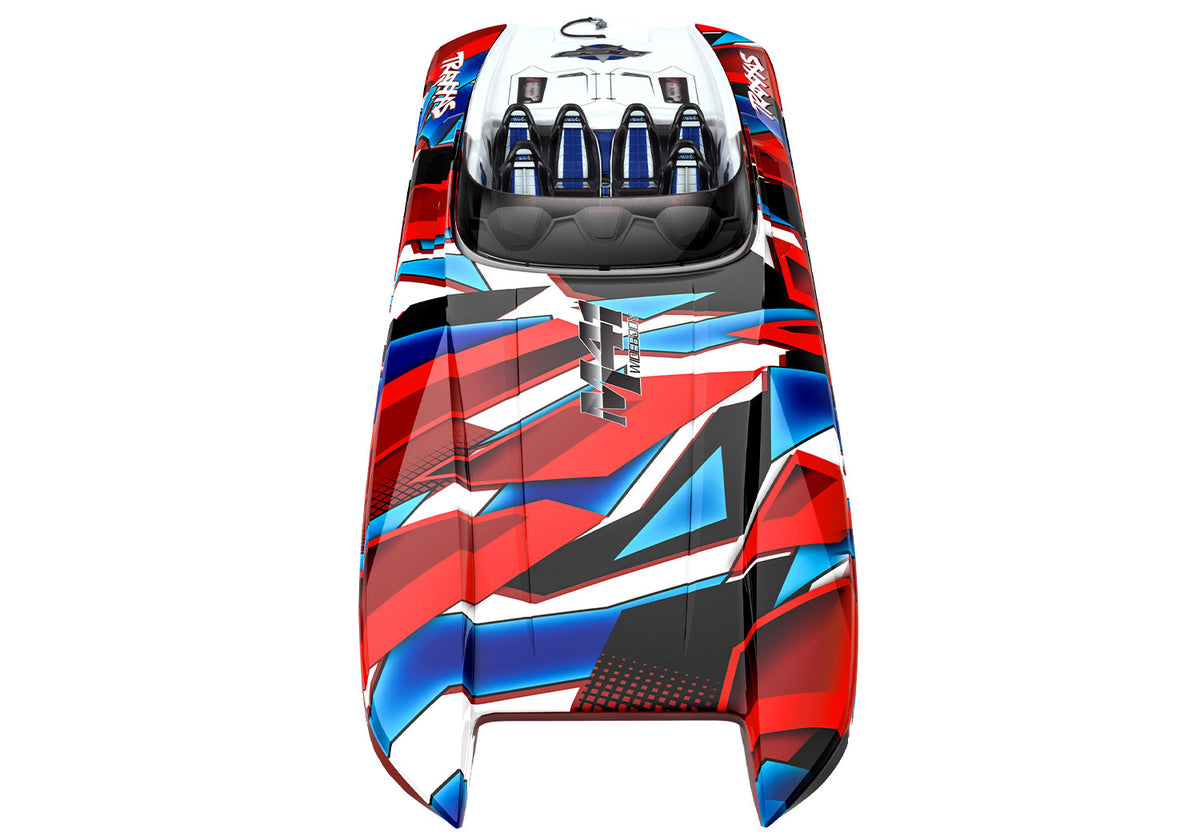

40” DCB M41 Catamaran Hull
- Replica of Dave’s Custom Boats M41 Widebody
- Highly detailed cockpit
- Lightweight ABS hull
- Reinforced transom
- Quick-release Power Module integrates power system, waterproof electronics, and stuffing tube
- Pre-painted graphics
- Easy-access hatch with body clip lanyard
- Molded foam in the bow for extra security
-
VXL-6s™ Marine Electronic Speed Control
- Innovative waterproof design
- Integrated water cooling
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Built-in two-stage low-voltage detection for LiPo batteries
- Locked rotor protection
- NiMH battery packs: 6-18 cells (7.2 to 21.6 volts)
- LiPo battery packs: 2-6 cells (7.4 to 22.2 volts)Powered accessory ports
-
Velineon® 540XL Brushless Motor
- 1800kV
- 5 mm output shaft
- Ultra high-temperature sintered Neodymium magnets
- Unique high-flow silicone water cooling jacket
-
Traxxas Stability Management® (TSM)
- Improves straight line acceleration
- Never dulls throttle or slows the vehicle
- Adjusts from off to 100% assistance from the transmitter
-
TQi™ 2.4GHz Radio System
- 2-channel transmitter
- 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented waterproof receiver box
-
Integrated Battery Trays
- Integrated trays reinforce hull
- Hold a variety of 2-cell and 3-cell LiPo batteries
- Batteries can be positioned fore or aft for better balance
-
Driveline
- Quick release flex cable
- Blue-anodized aluminum drive strut
- High performance prop
-
Steering
- Waterproof digital 2056 servo
- Blue-anodized aluminum rudder
- Stainless steel trim tabs and turn fins
- Low-maintenance Oilite bushings
- Stainless steel hardware
- Requires Battery and Charger (Sold Separately)
Model Specs
| Model Name: |
M41 Catamaran |
| Model Type: |
Boats |
| Model Speed: |
50+ mph with two 3-cell LiPo batteries |
| Model Skill Level: |
2 |
| Scale: |
1/10 |
| Weight: |
5.42 pounds (2.46 kg) |
| Length: |
40.6 inches (1030 mm) |
| Width: |
10.5 inches (267 mm) |
| Height: |
5.95 inches (151 mm) |
| Drive System: |
Direct drive, 0.150" flex cable |
| Prop: |
2-blade composite, 42 mm x 59 mm |
| Outdrive: |
Adjustable aluminum |
| Hull Length: |
39.5 inches (1003 mm) |
| Dead Rise Angle: |
14.5 degrees |
| Overall Length: |
40.6 inches (1030 mm) |
| Overall Height: |
5.95 inches (151 mm) |
| Beam (Width): |
10.5 inches (267 mm) |
| Hull Type: |
Vacu-formed ABS, catamaran |
| Servo(s): |
#2056 high-torque waterproof |
| Radio System: |
TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver |
Motor Specs
| Motor Name: |
Velineon® 540XL |
| Motor Type: |
Sensorless brushless |
| Motor Weight: |
13.62 ounces (386 g) |
| Motor Length: |
4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length |
| Motor Diameter: |
1.42 inches (36 mm) |
| Motor Shaft Size: |
5 mm |
| Motor Connector Type: |
Traxxas 5.5 mm bullet connectors |
ESC Specs
| ESC Name: |
Velineon® VXL-6s |
| ESC Type: |
Brushless |
| ESC Case Size: |
2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight: |
7.30 ounces (207 g) |
| Motor Connectors: |
Traxxas 5.5 mm bullet connectors |
| Battery Connectors: |
Traxxas High Current Connector |
