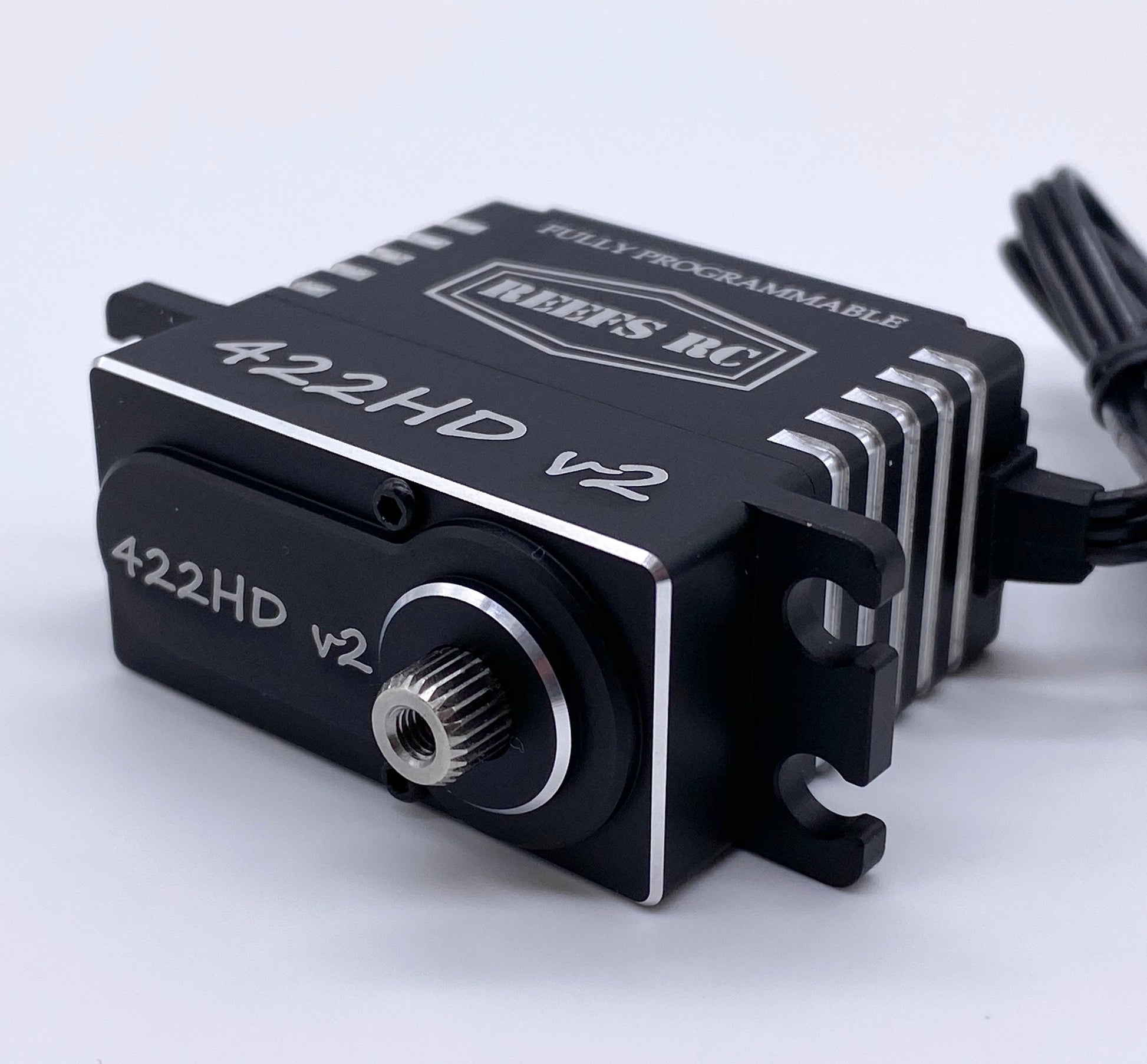

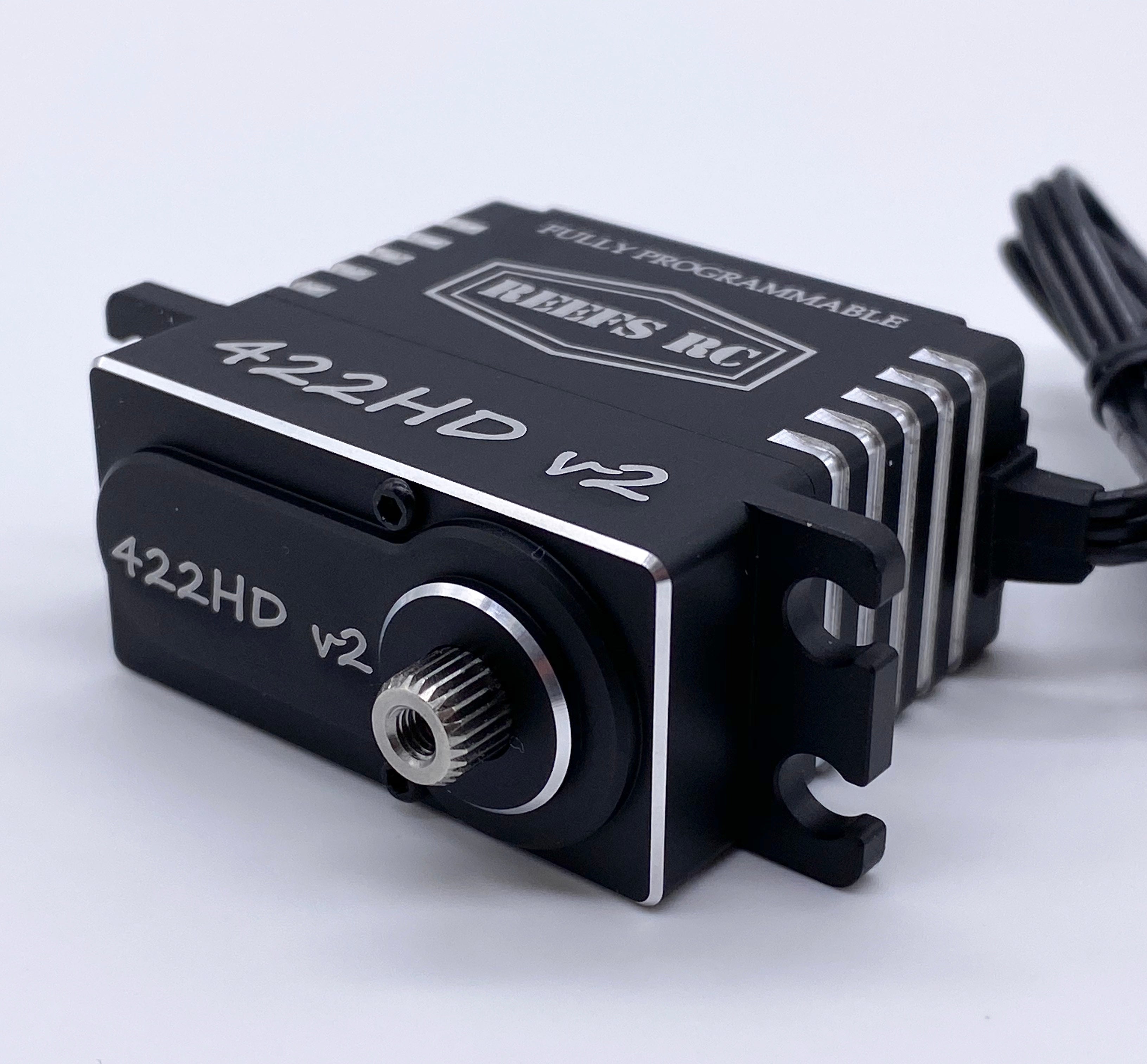

REEFS RC 422HDV2 High Torque Digital Coreless Servo
Regular price
$ 104.99
Couldn't load pickup availability
Features
- High Torque Digital Coreless Servo
- Waterproof: 7 Point Seals Submersible
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable with REEFS Software (REEFS LINK Required For Programming)
- Steel Gears / All CNC Aluminum Casing
- Three Ball Bearings
- 434oz-in/0.10 sec @ 8.4V
- 25T Output Spline
- BEC Not Required (Recommended for Max Performance)
Product Specifications
| Maximum Servo Torque | 434oz/in at 8.4V (0.10sec. transit time) |
| Product Width | 0.78" (20 mm) |
| Bushing Or Bearing | Bearing |
| Maximum Servo Speed | 0.100-0.149 sec |
| Connector Type | Universal |
| Product Length | 1.57" (40 mm) |
| Programmable | Yes |
| Servo Size Category | Standard |
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Input Voltage | 4.8V - 8.4V |
| Servo Type | Digital |
| Product Height | 1.5" (38 mm) |
| Application | Rock Crawlers, Monster Trucks |
| Max Servo Torque | 350-499 oz-in |
| Spline Count | 25 - Tooth |
| Water-Resistant | Yes |
