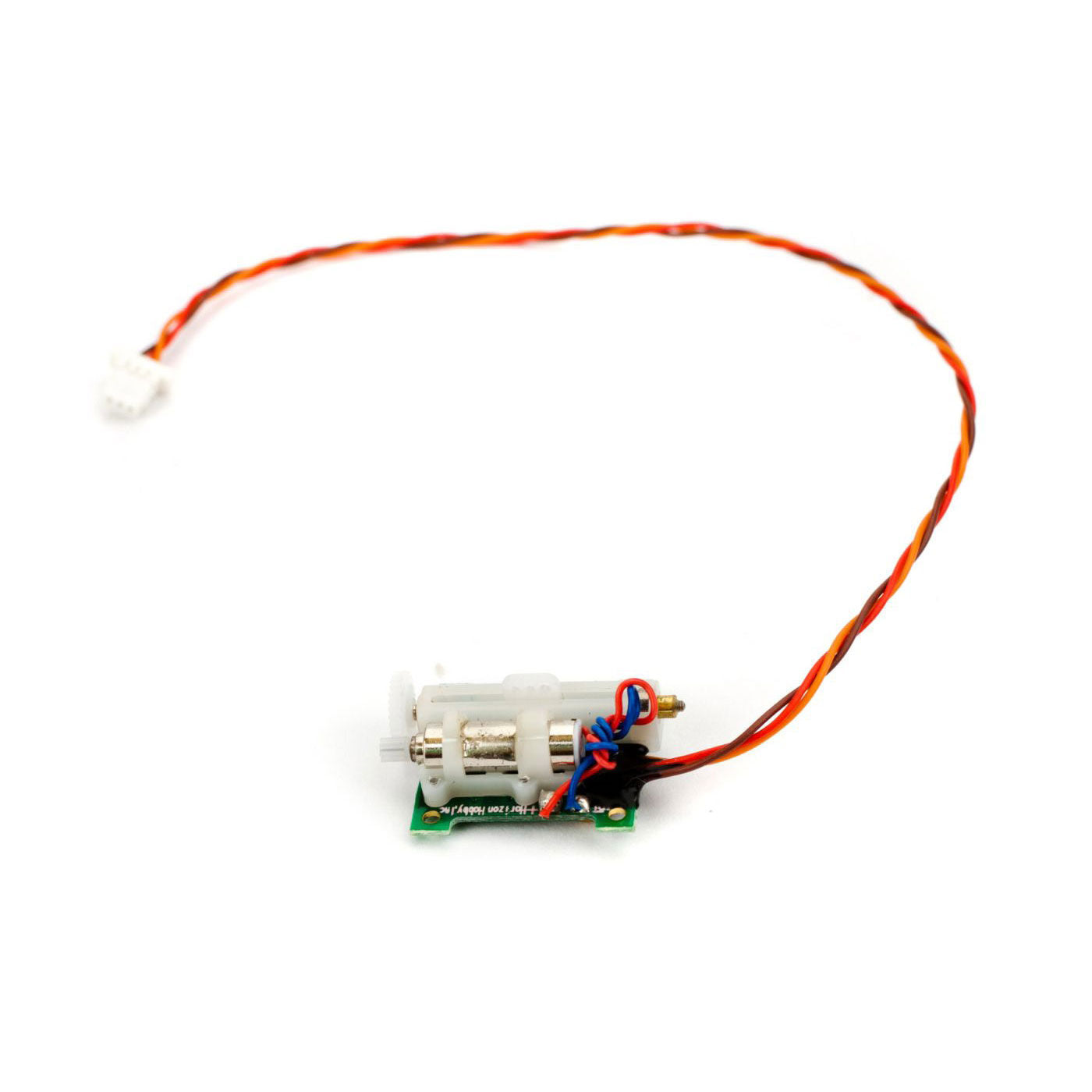

2.3-Gram Performance Linear Long Throw Servo

In stock
SKU: SPMSA2030L Barcode: 605482034637
Regular price $ 19.99 USD

Features

  • Long throw version
  • Great for ultra mirco aircraft

Overview

The 2.3-gram Linear Long Throw Offset Servo is a special use servo designed for modelers without computer transmitters who would like to add aileron differential to their ultra micro aircraft. It comes programmed with a 70/30 offset from center and can be used with any Spektrum AR6400-series receiver.

Features

  • Long throw offset servo is perfect for controlling ailerons on ultra micro models
  • Offset provides for built-in differential
  • JST-SHR Connector

Detailed Information


Click Here to see Spektrum's Servo Reference Chart

Specifications

Application Air
Bearing Single
Bushing Or Bearing Bearing
Connector Type JST-SHR
Gear Type Nylon
Max Servo Torque Less than 20 oz-in
Maximum Servo Torque 3.5 oz (100 g) @ 4.2V
Motor Type Brushed
Product Application Air
Product Height 0.33" (8.20mm)
Product Length 0.87" (22.0mm)
Product Weight 0.10 oz (2.50g)
Product Width 0.66" (16.9mm)
Programmable
Yes
Servo Operating Voltage
3.2 - 4.2V
Servo Size Category
Ultra Micro
Servo Type
Analog
