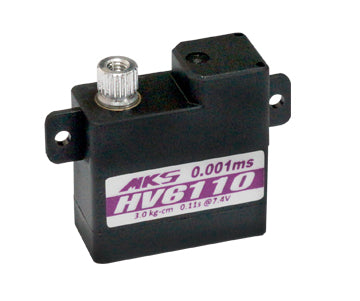

MKS Servos HV6110 Metal Gear Mini Servo (High Voltage)

The MKS HV6110 Metal Gear Mini Servo is perfect for F3K, F3J, F5B, F3D, 2M and Slope glider applications that require a precise wing servo with low power consumption and superior holding torque, combined with the flexibility of high voltage circuitry.

Specifications:

• Torque:
• @6.0V: 36.1 oz-in (2.6 kg-cm)
• @7.4V: 41.6 oz-in (3.0 kg-cm)
• @8.2V: 47.2 oz-in (3.4 kg-cm)
• Speed:
• @6.0V: 0.14s
• @7.4V: 0.11s
• @8.2V: 0.10s
• Weight: 9.8g

• Dimension: 22.5x10x23.5mm
• Working Voltage: 3.8 ~ 8.4 V DC Volts  (2S LiPo unregulated)
• Working frequency: 1520?s / 333hz
• Dead Band: 0.001 ms (Default)
• Bearing: 2 Jewel Bearings + 1 Bronze Bushing

• Motor: Coreless Motor
• Gear: Metal + Aluminum Magnesium alloy gears
