MKS Servos HV93 Metal Gear Micro Digital Servo (High Voltage)
Regular price
$ 77.80
Couldn't load pickup availability

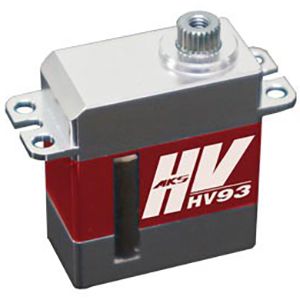

This is the MKS HV93 Metal Gear Micro Digital High Voltage Servo.
Specifications:
Dead Band:Â 0.001ms (Default)
Control System:Â +Pulse Width Control
Working Frequence:Â 1520?s / 333hz
Operating Voltage:Â 3.8~8.4 V DC Volts
Operating Speed (6V): 0.07 sec/60° degrees at no load
Operating Speed (8.4V): 0.05 sec/60° dagrees at no load
Stall Torque (6V):Â 31.25 oz/in (2.25 kg-cm)
Stall Torque (8.4V):Â 44.44 oz/in (3.2 kg-cm)
Motor Type:Â Coreless Motor
Potentiometer Drive:Â Direct Drive
Bearing Type:Â Dual Ball Bearings
Gear Type:Â Chrome-Titanium alloy gear
Programmable:Â No

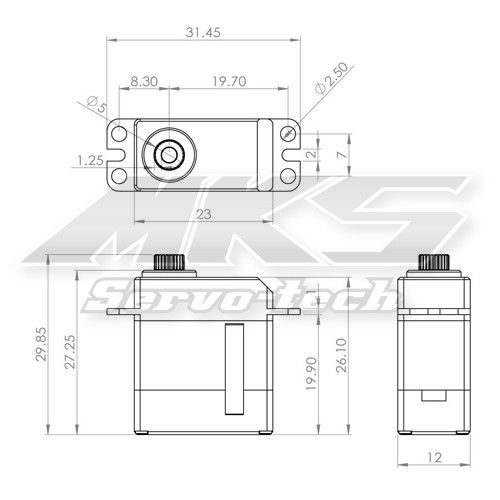

Dimensions:Â 23x12x27.25 mm (0.9x0.47x1.07 in)
Weight:Â 19.87 g
